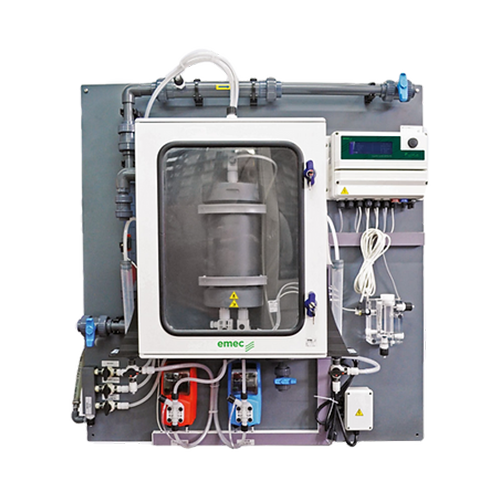

LOTUS MAXI

LOTUS MAXI is the largest product of our chlorine dioxide generators, is used in all those cases in which there is need of a big production, such as large water treatment plants.

SKU: LMA001 Categories: , Product ID: 650

Description

LOTUS MAXI is the largest product of our chlorine dioxide generators, is used in all those cases in which there is need of a big production, such as large water treatment plants.

Chlorine dioxide produced by LOTUS MAXI is set to be proportional to the circulating water flow or based on a setpoint, it is then dosed into the water flow.

GAS SENSOR OPTION
LOTUS MAXI with gas sensor detection.

  • PERMANENT DATA STORAGE (WITHOUT BATTERY) with system log on display
  • Stand-by input
  • 3 flow sensors (mod. SEFL) input
  • Real time production data
  • Multifunction valve (MFKT/V)
  • IP65 protection (NEMA4x) of LOTUS control instrument
  • Working temperature: 0-45°C (32-110°F)
  • PVC reaction chamber
  • Instantaneous ClO2 production
  • ClO2 dosing in PROPORTIONAL mode
  • ​Pumps and SEFL flow sensors monitoring
  • Service due data
  • Water meter input
  • Flow control input (flow alarm)
  • Tank level controls (level alarms)
  • LOTUS control instrument
  • HCl (red) and NaClO2 (blue) metering pumps
  • Pump for diluition water (grey)
  • mA output
  • mV or ClO2 or temperature reading (on request)

We give full refund or replace with new one, if we install or replace the system or the replacement cartridge and at the time of installation or in the next 14 days the customer is not satisfied.

Additional information

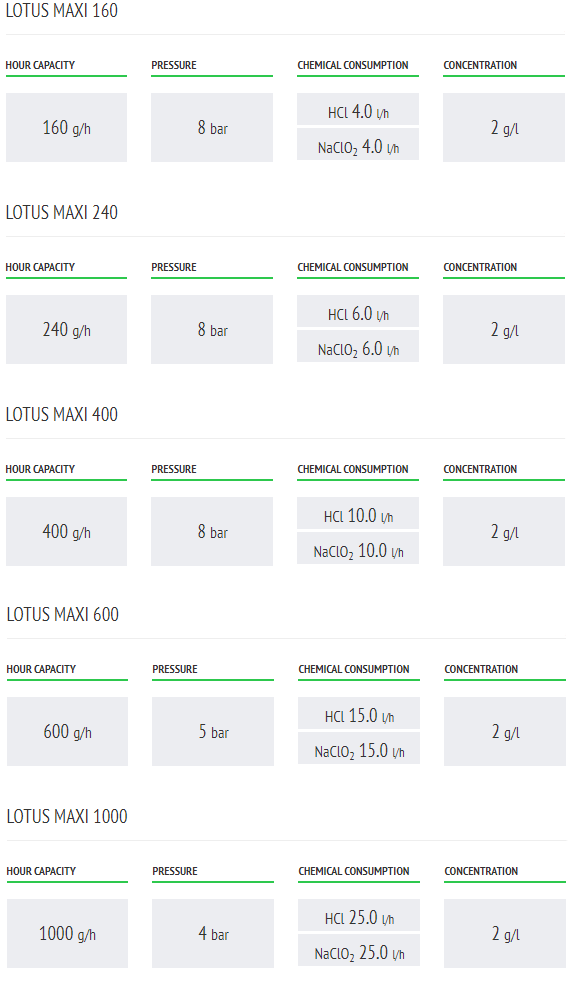

Model

LOTUS MAXI 160, LOTUS MAXI 240, LOTUS MAXI 400, LOTUS MAXI 600, LOTUS MAXI 1000
