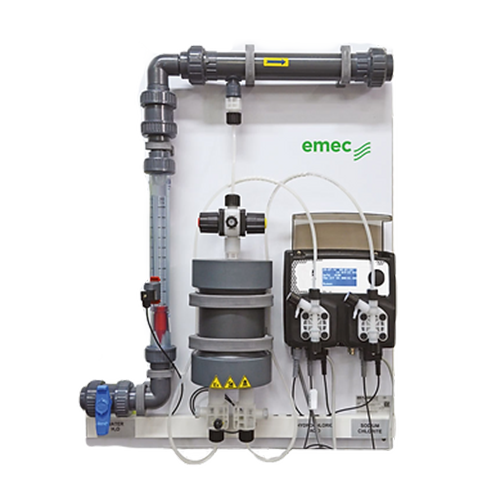

LOTUS EASY

LOTUS EASY is designed to produce chlorine dioxide in a reaction chamber. Multifunction valves on injection points ensure security of reaction chamber.

SKU: LE001 Categories: , Product ID: 631

Description

LOTUS EASY is an integrated all-in-one controller with two metering pumps for a simple but professional use. LOTUS EASY system produces, doses and controls chlorine dioxide for water disinfection.

Chlorine dioxide is produced from diluted base chemicals: acid-chlorite process by hydrochloric acid (HCl 9%) and sodium chlorite (NaClO2 7,5%).

​Chlorine dioxide produced by LOTUS EASY is set to be proportional to the circulating water flow. There is no storage of chlorine dioxide hence no chlorine dioxide gas or concentrated solutions exist outside of process application.

LOTUS EASY is designed to produce chlorine dioxide in a reaction chamber. Multifunction valves on injection points ensure security of reaction chamber.

  • Stand-by input
  • Real time production data
  • Multifunction valve (MFKT/V)
  • Working temperature: 0-45°C (32-110°F)
  • ClO2 concentration: 20 gr/l
  • Level alarms
  • Static mixer
  • PVC reaction chamber
  • By-pass diametre: DN 40
  • Instantaneous ClO2 production
  • ​ClO2 dosing in PROPORTIONAL mode
  • Pumps and SEFL flow sensors monitoring
  • Service due data
  • By-pass flow detection
  • mA (0-20mA) input
  • Water meter input
  • Main voltage control
  • Out of range voltage alarm
  • By-pass input

We give full refund or replace with new one, if we install or replace the system or the replacement cartridge and at the time of installation or in the next 14 days the customer is not satisfied.

Additional information

Model

LOTUS EASY 8, LOTUS EASY 20, LOTUS EASY 40, LOTUS EASY 80
